MPI5K Measurements January 2023
Measurements PCB of MPI5K
MPI5K Documentation November 13th 2022
Failure Display Error 03 Softstart failure
Rewire 01
Rewire 01

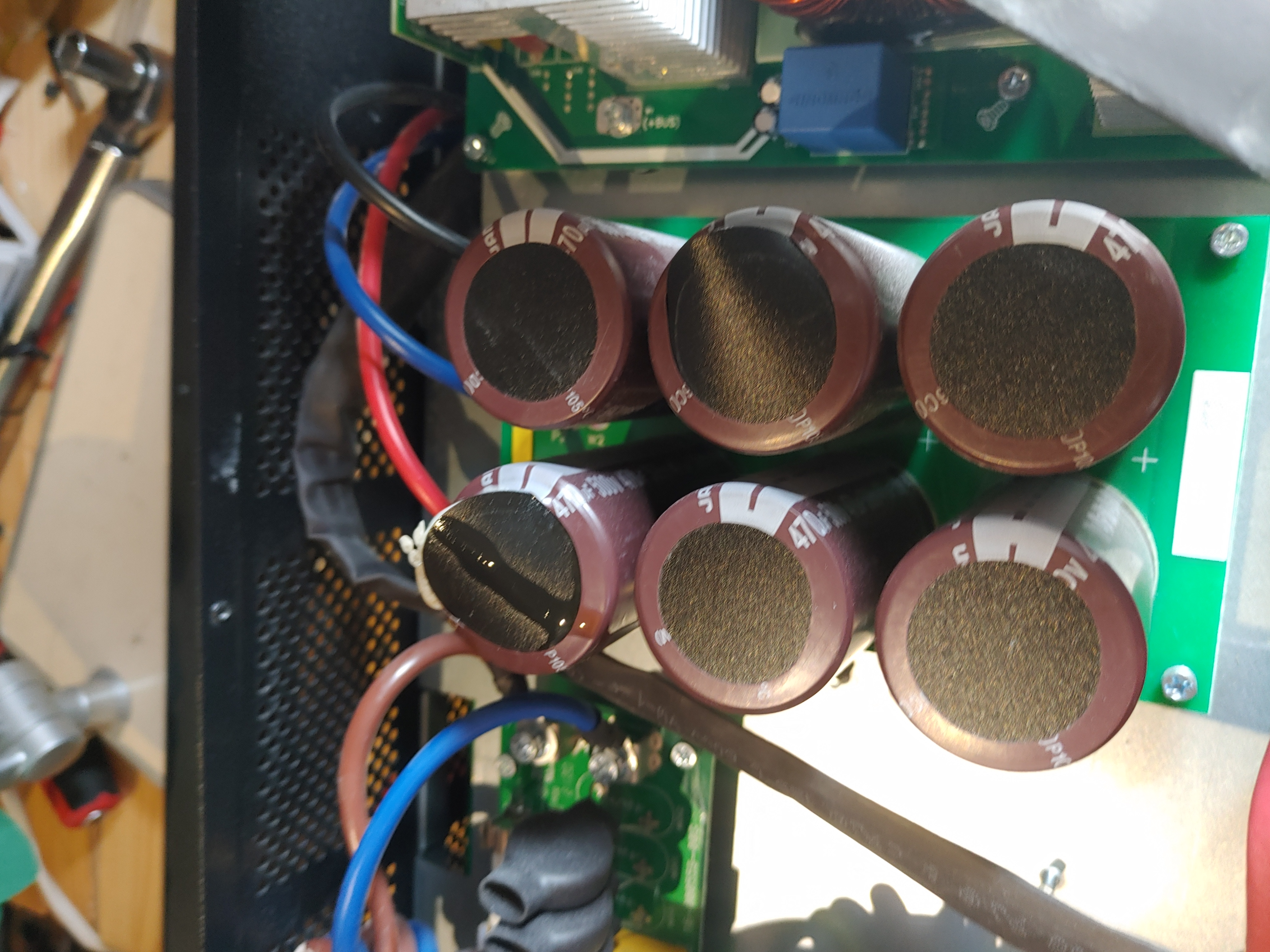

Blown Capacitors 500V 470uF
Resitence Wire
Resistence New Mainboard after failure
Walk through top layer
Resitence cap board to ground
Old Mainboard Failure

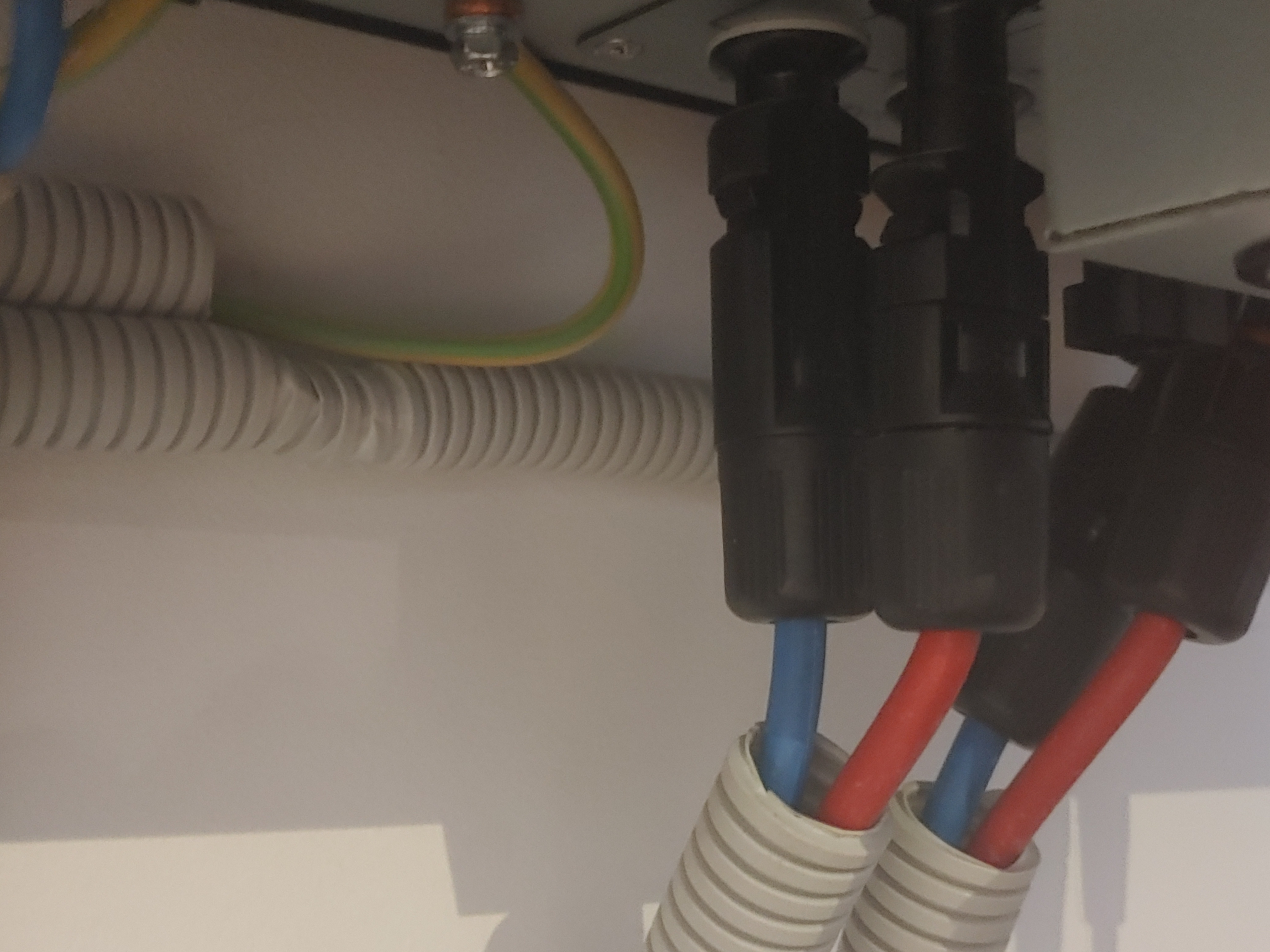

PV external
PV voltage polarity

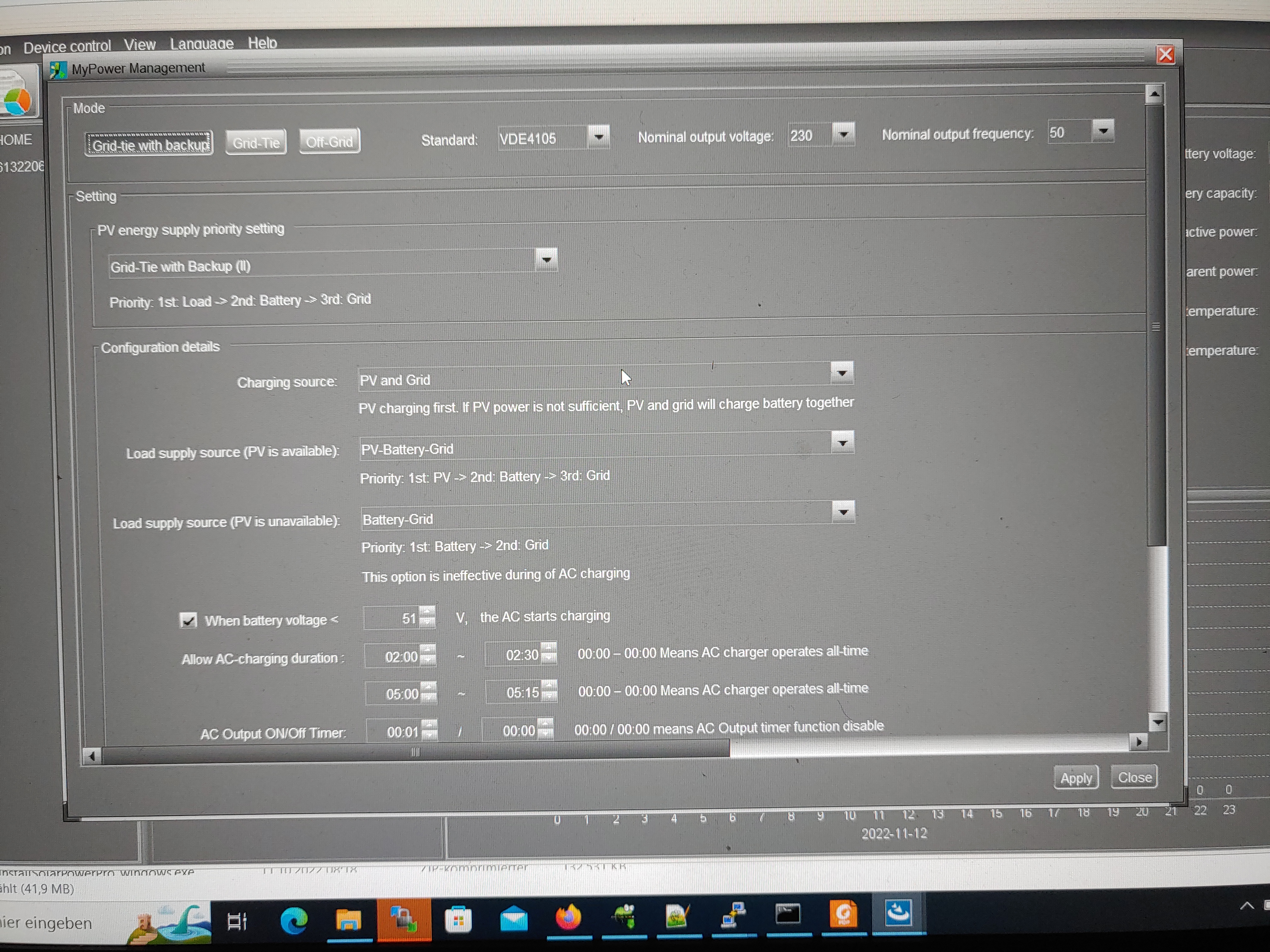

SolarPower Mainscreen
SolarPower Mainscreen P2

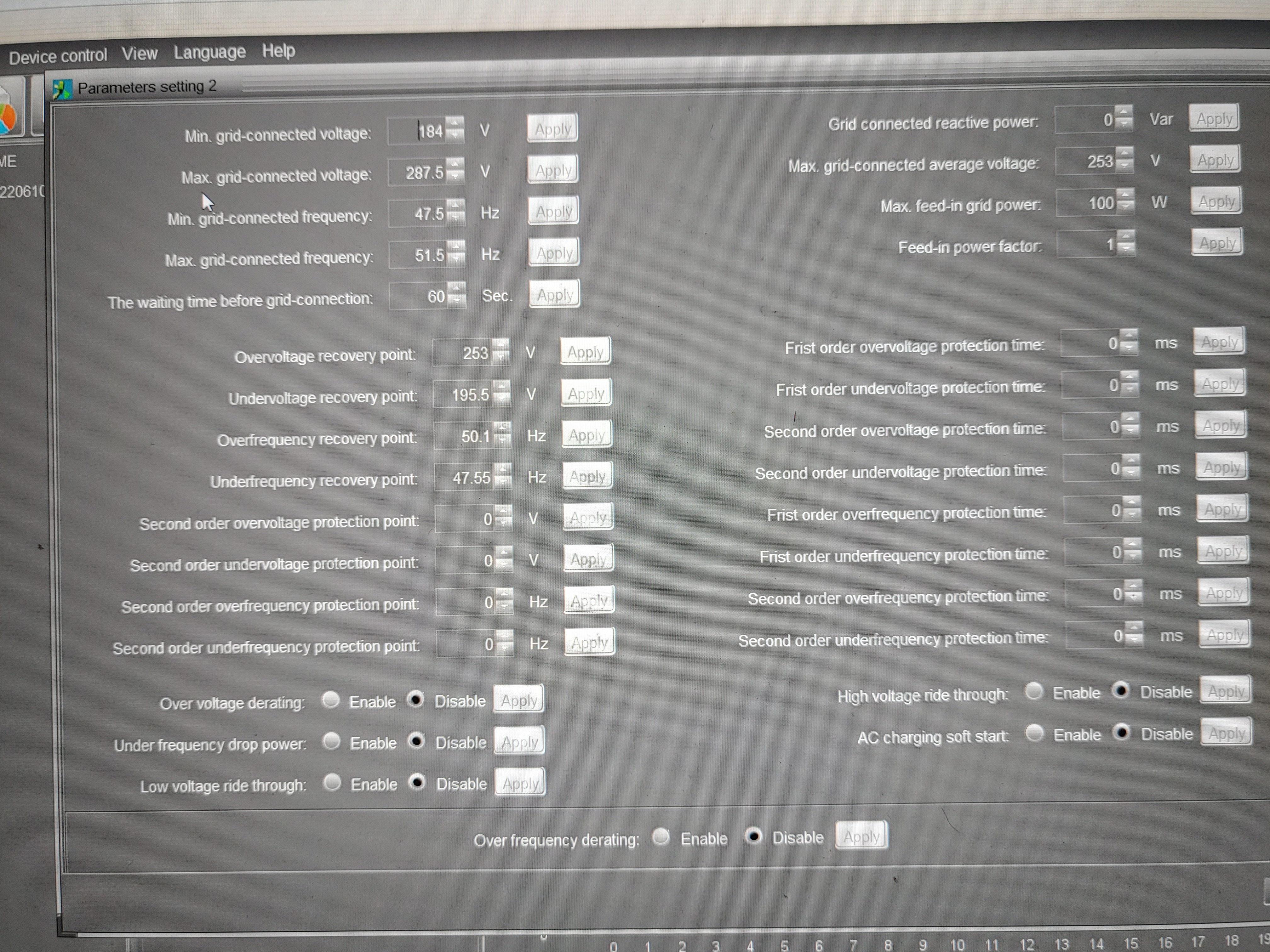

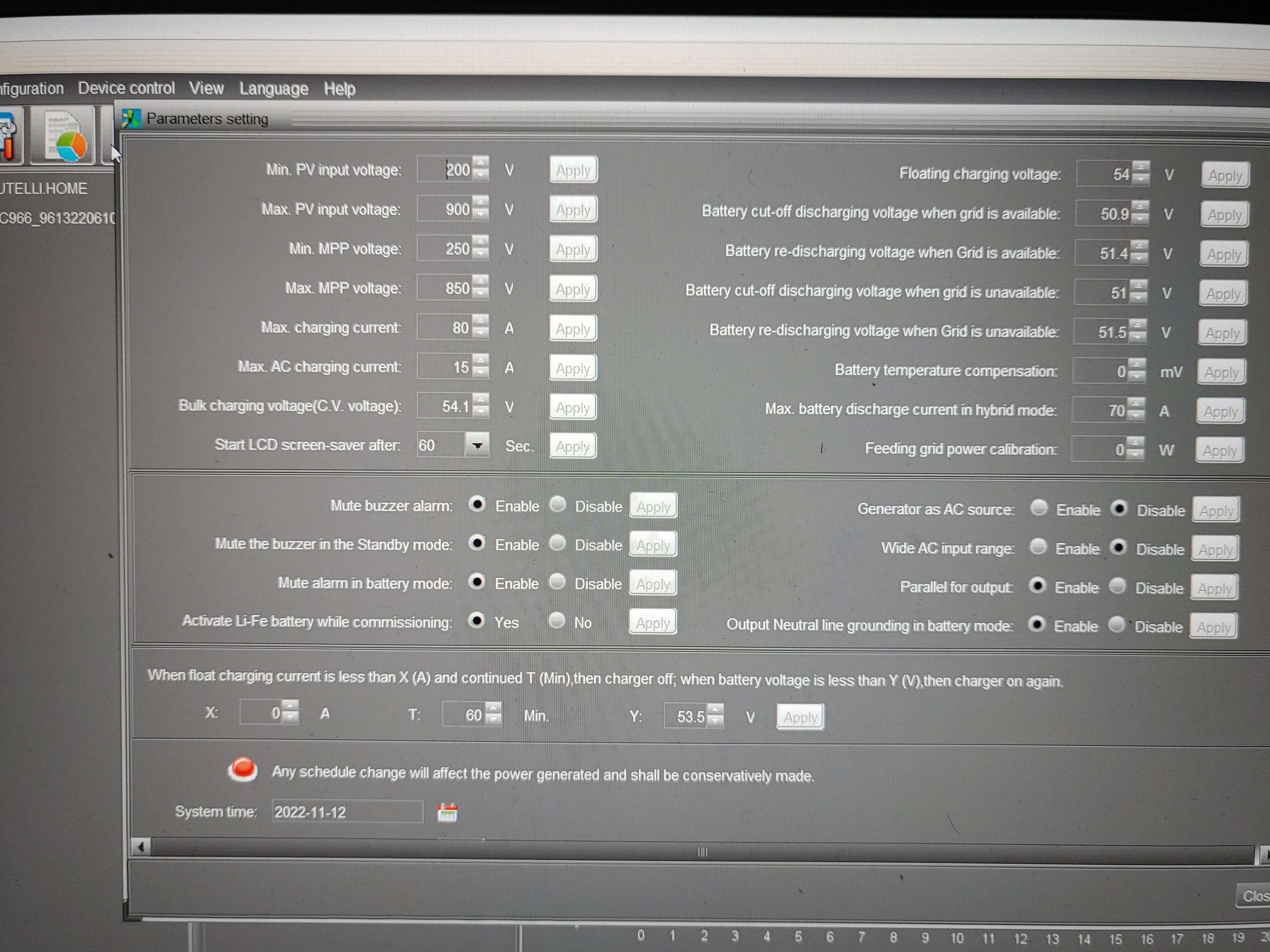

SolarPower Parameters
SolarPower Parameters 2

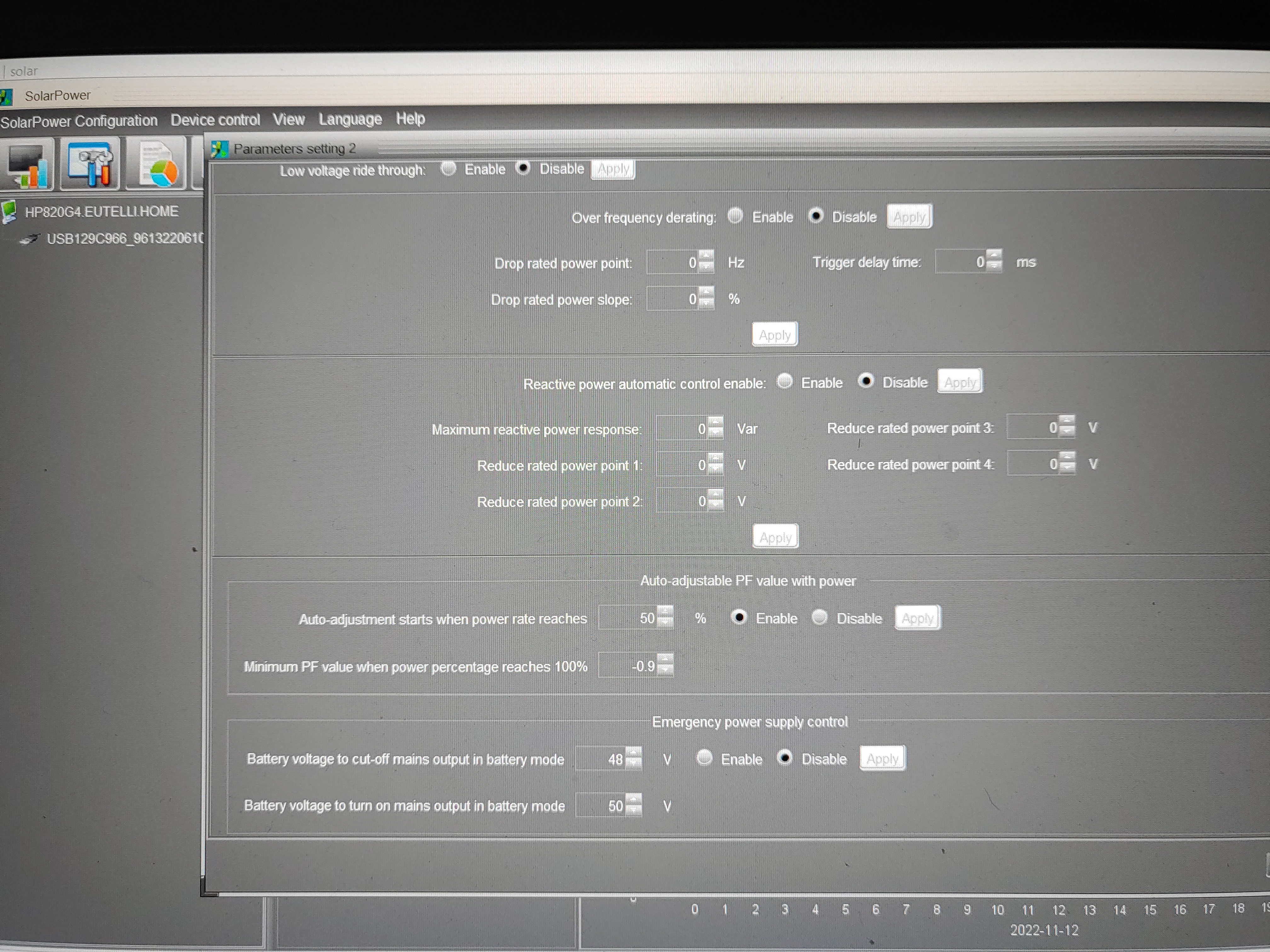

SolarPower Parameters 2 Page 2
MPI5K Documentation Oktober 2022

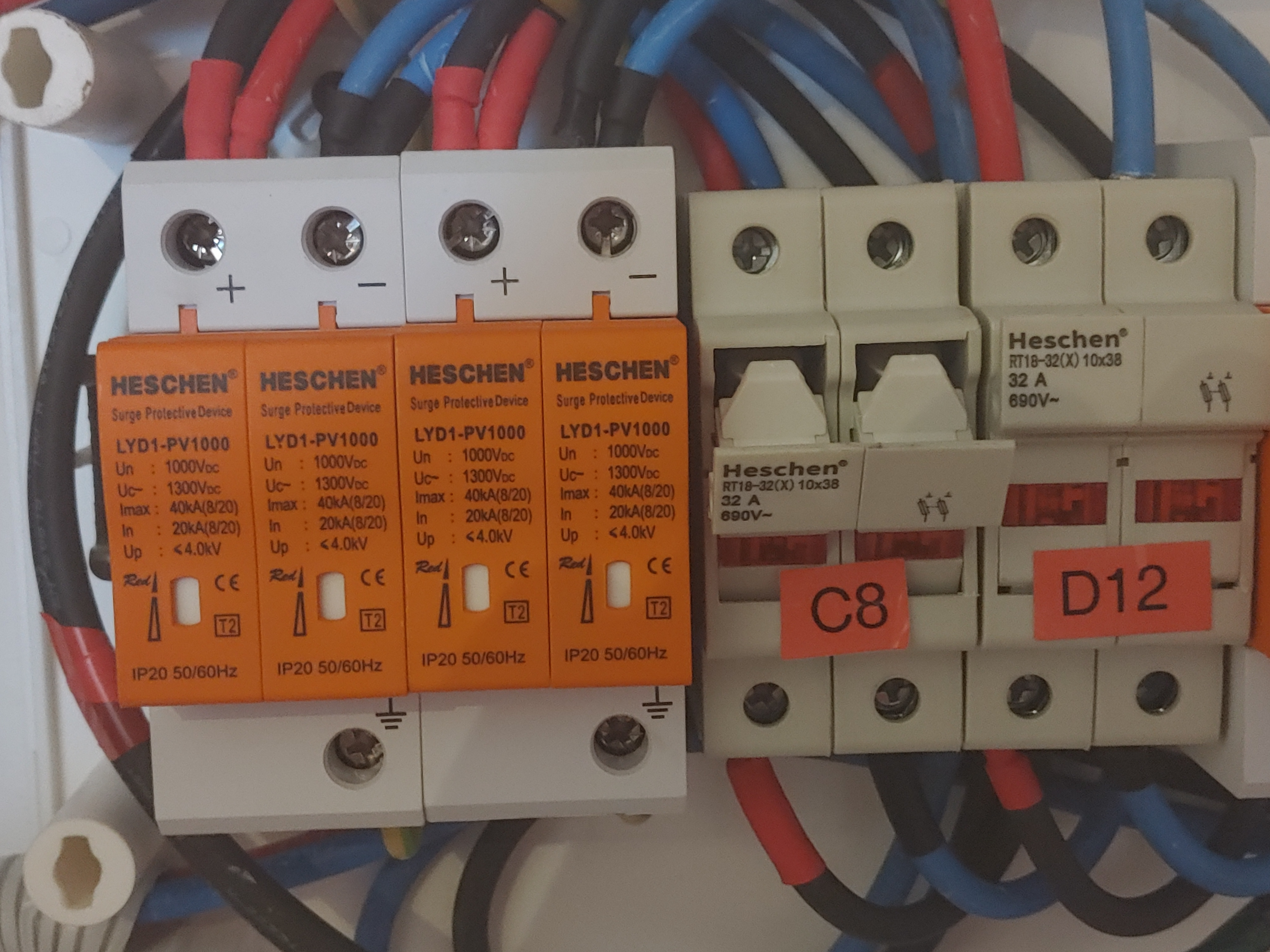

FUSES
MPI5KBottom
Q_CELLS_Datenblatt

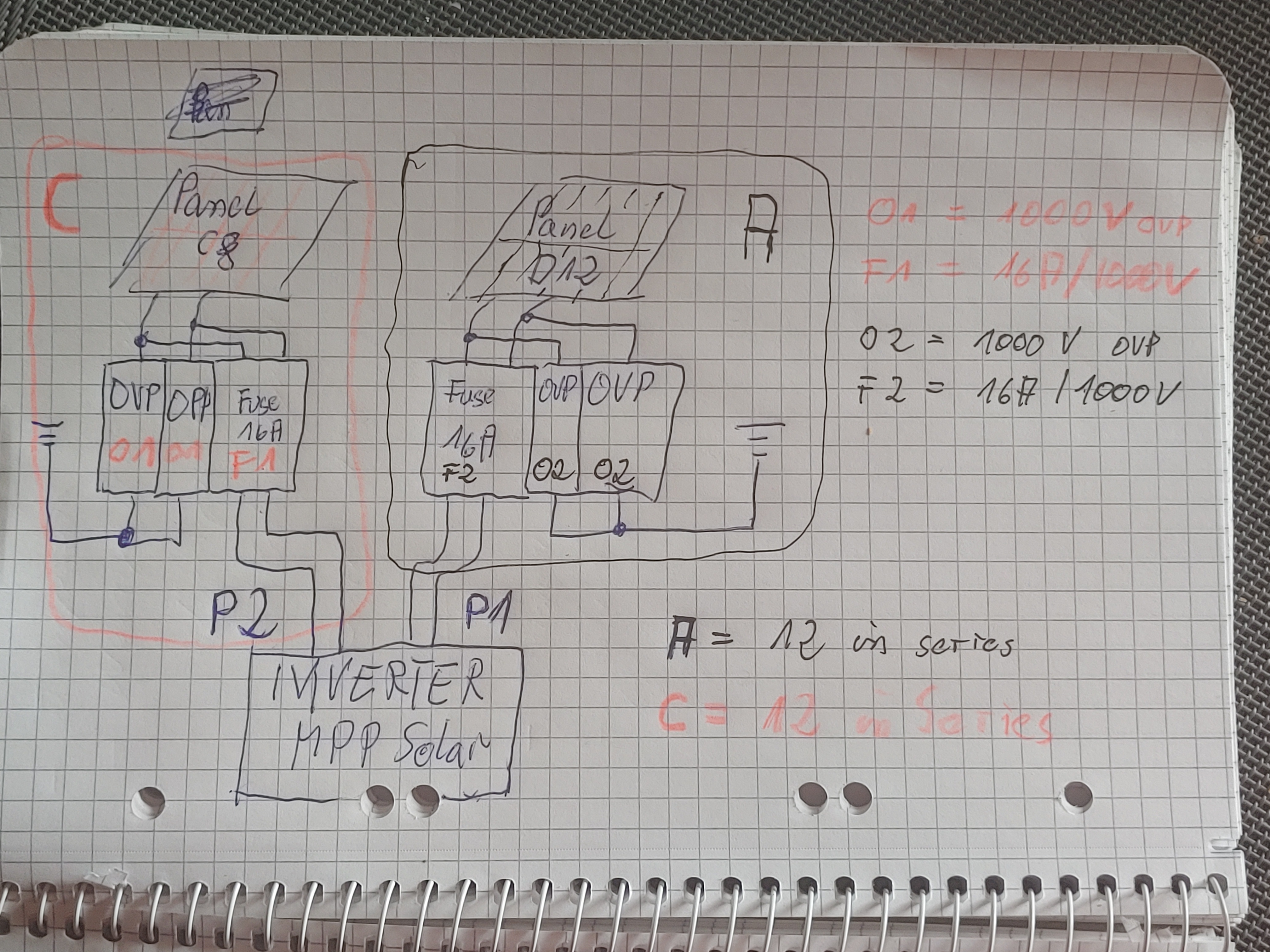

schematic
Measurements PCB of MPI5K
